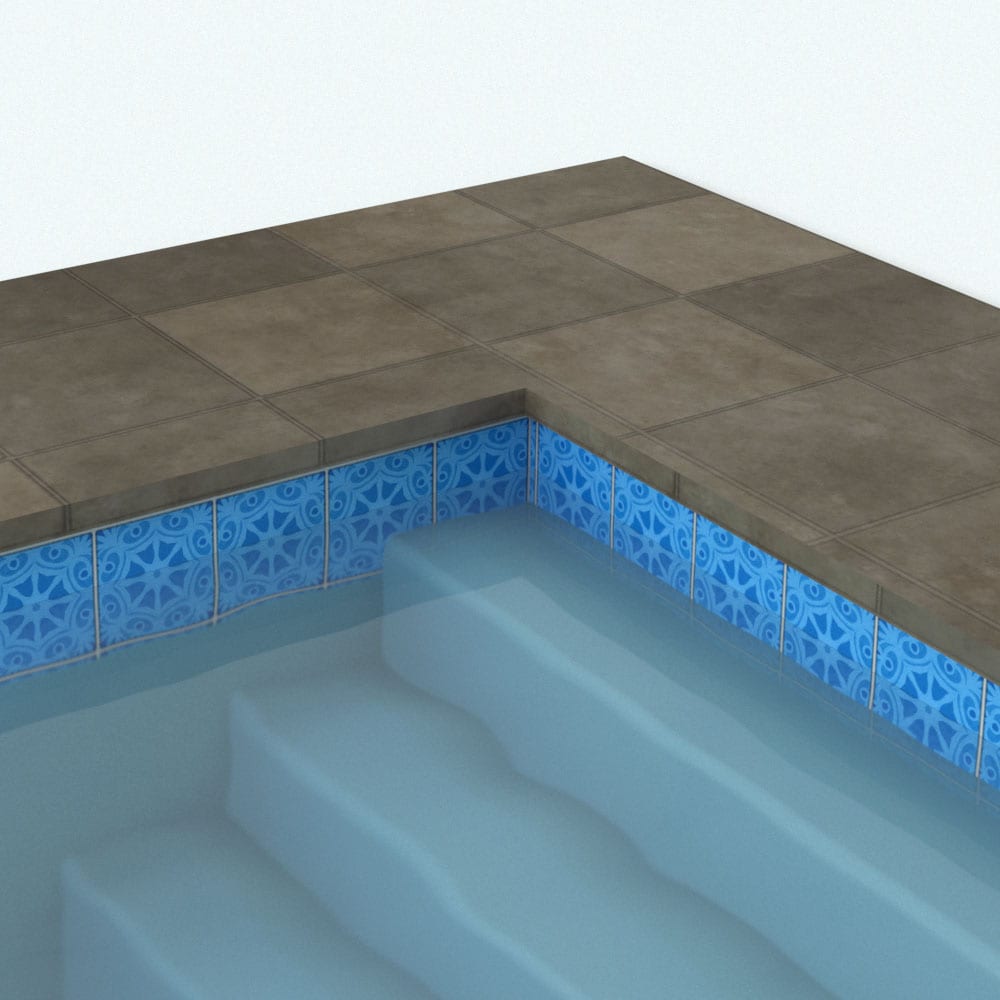

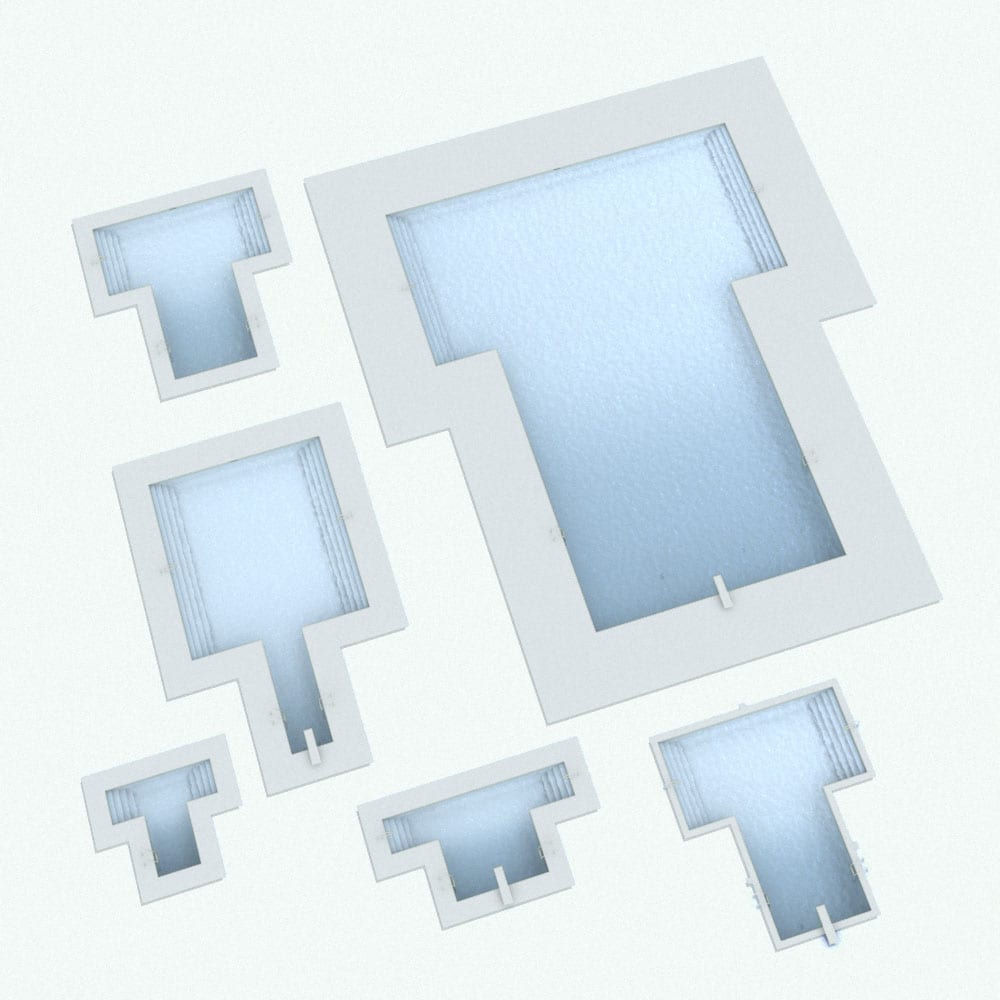

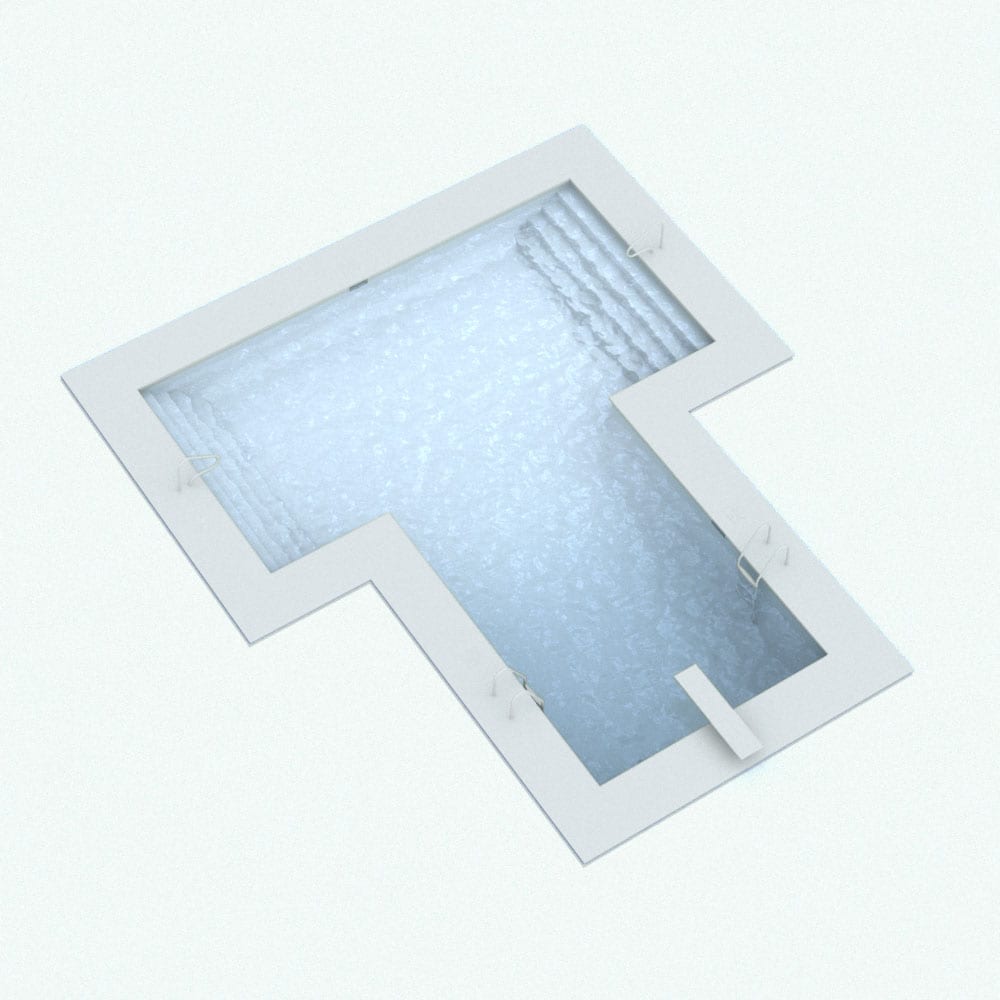

The T-Shape Swimming Pool Revit Family offers a unique layout that enhances both aesthetics and functionality. Its innovative T-shaped design provides distinct areas for relaxation and active swimming, making it ideal for multi-purpose outdoor spaces. Perfect for residential or commercial projects, this swimming pool adds a modern touch while accommodating various recreational needs. With its detailed water textures and customizable features, this T-Shape Swimming Pool Revit Family allows architects and designers to tailor the pool to suit diverse landscapes and styles. The T-shape ensures versatility, offering zones for lounging, laps, or poolside entertainment, making it a standout feature in any design. This Revit swimming pool family attaches to faces and it will create a hole on them automatically for ease of use. For a detailed description of parameters and materials of this Revit swimming pool family, please read the Revit Family Technical Information section below.   Revit Family Technical Information Parametric: Yes Hybrid*: No Compatible with: Revit 2016 and higher. Family type: Generic Model Face Based Materials/textures: Yes Approximate file size: 1.86 MB File format: .rfa   This T-Shape Swimming Pool Revit Family comes with the following customizable parameters and options: Size of swimming pool: Minimum width (shallow part): 6′ Maximum width (shallow part): 100′ Minimum length (shallow part): 17′ Maximum length (shallow part): 110′ Minimum width (deep part): 7′ Maximum width (deep part): shallow length – 10′ Minimum length (deep part): 10′ Maximum length (deep part): 100′ Swimming pool frame width: Minimum frame width: 11″ Maximum frame width: longest of all dimensions This swimming pool Revit family comes with the following objects: Pool Ladder Diving Board Handrail Skimmer with Hatch Drains Returns The ladder in this swimming pool Revit family comes in three different types (shapes) Number of steps on ladder: Minimum number of steps: 2 Maximum number of steps: 4 The diving board base in this swimming pool Revit family comes in three different types (shapes) Handrail comes in five different types (shapes) Skimmer Width: Minimum skimmer width: 0′ 7 3/8″ Maximum skimmer width: 3′ The following objects can be turned on/off (visibility): Pool Ladder Diving Board Handrail Skimmer Hatch Returns This T-Shape Swimming Pool Revit Family comes with material parameters for: Pool Concrete Pool Frame Pool Trim Material Pool Water Pool Ladder Diving Board Base Diving Board Handrail Pool Drain Inside Pool Drain Pool Return Skimmer Hatch Skimmer   IMPORTANT NOTE ABOUT THIS SWIMMING POOL REVIT FAMILY: Pool needs to be placed on a face. It will automatically create the hole on it. It won’t create a hole on toposurfaces though. * Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.   Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
