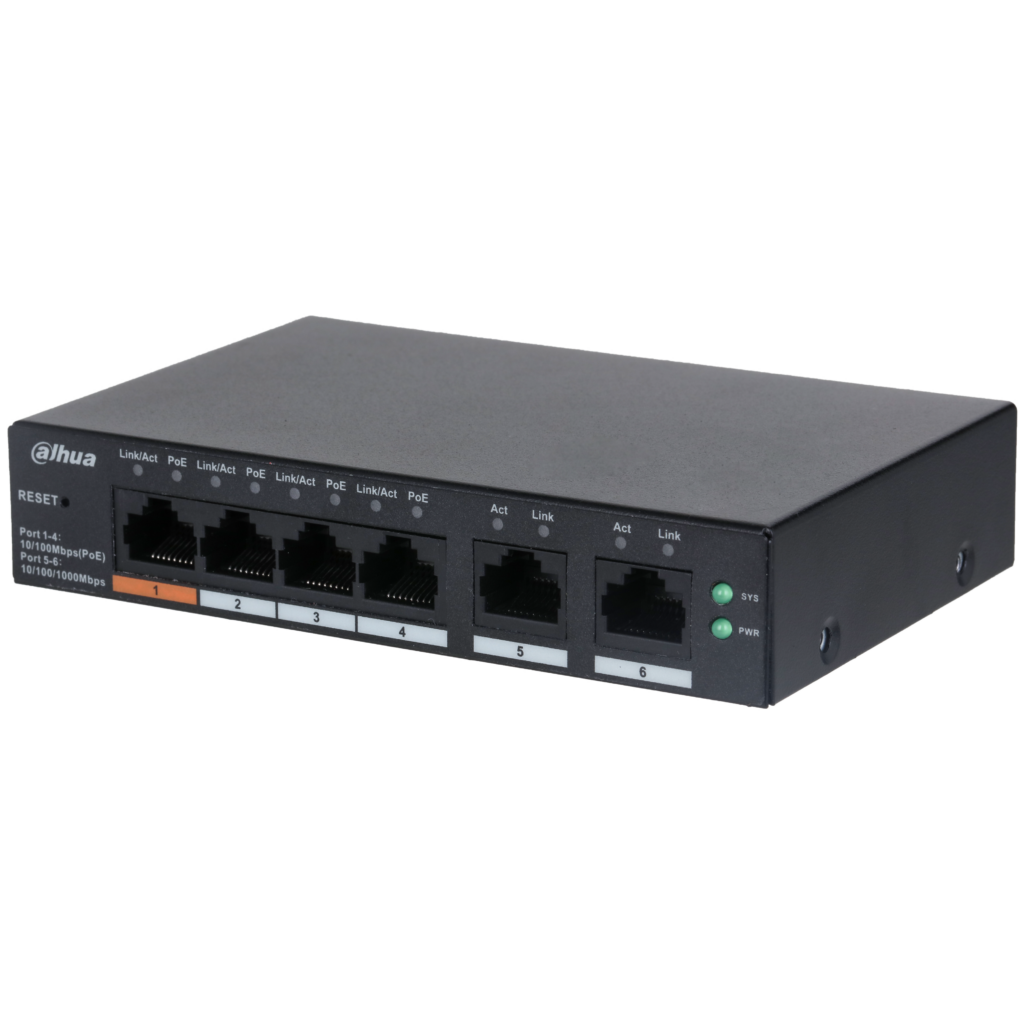

คุณสมบัติHardwareIncluded Power AdapterYesPoEYesEthernet Port4Ethernet Port Speed10/100 MbpsEthernet Port Uplink Speed10/100/1000 MbpsDescription of Function SlotsPort 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)Reset Button1Power SupplyExternal power supply: 53 VDC, 1.226 AOperating Temperature–10 °C to 55 °C ( 14 °F to 131 °F)Operating Humidity5%–95% (RH), non-condensingStorage Temperature–40 °C to 70 °C (–40 °F to 158 °F)Storage Humidity5%–95% (RH), non-condensingPower ConsumptionIdling: ≤3 W Full load: 65 WPerformanceLayerLayer 2Management TypeYesSmart Managed SwitchYesMTBF232.62 yearsSwitching Capacity4.8 GbpsPacket Forwarding Rate3.57 MppsPacket Buffer Size4 MbitJumbo Frame9216 ByteMAC Table Size8KVLAN Number32Communication StandardIEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3abFeaturePoE ProtocolIEEE802.3af; IEEE802.3at; Hi-PoEPoE PowerPort 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 WPoE Power Consumption ManagementYesPoE Pin Assignment1,2,4,5（V ）,3,6,7,8（V-）Long Distance PoE TransmissionYesVLAN FunctionPort-based VLANIEEE 802.3x Flow ControlYesDHCP FunctionDHCP ClientEquipment ManagementWeb management; App managementGeneralStatics ProtectionAir discharge: 8 kV; Contact discharge: 6 kVLighting ProtectionCommon mode: 4 kV; Differential mode: 2 kVNet Weight0.28 kg (0.64 lb)Gross Weight0.92 kg (2.02 lb)Product Dimensions130 mm × 90 mm × 26 mm (5.11″ × 3.54″ × 1.02″) (L × W × H)Packaging Dimensions265 mm × 238 mm × 76 mm (10.43″ × 9.37″ × 2.99″) (L × W × H)Casing MaterialSheet metalInstallationDesktop mount; wall mount รหัสสินค้า: DH-CS4006-4ET-60 หมวดหมู่: Switch IP Camera
Related products
-

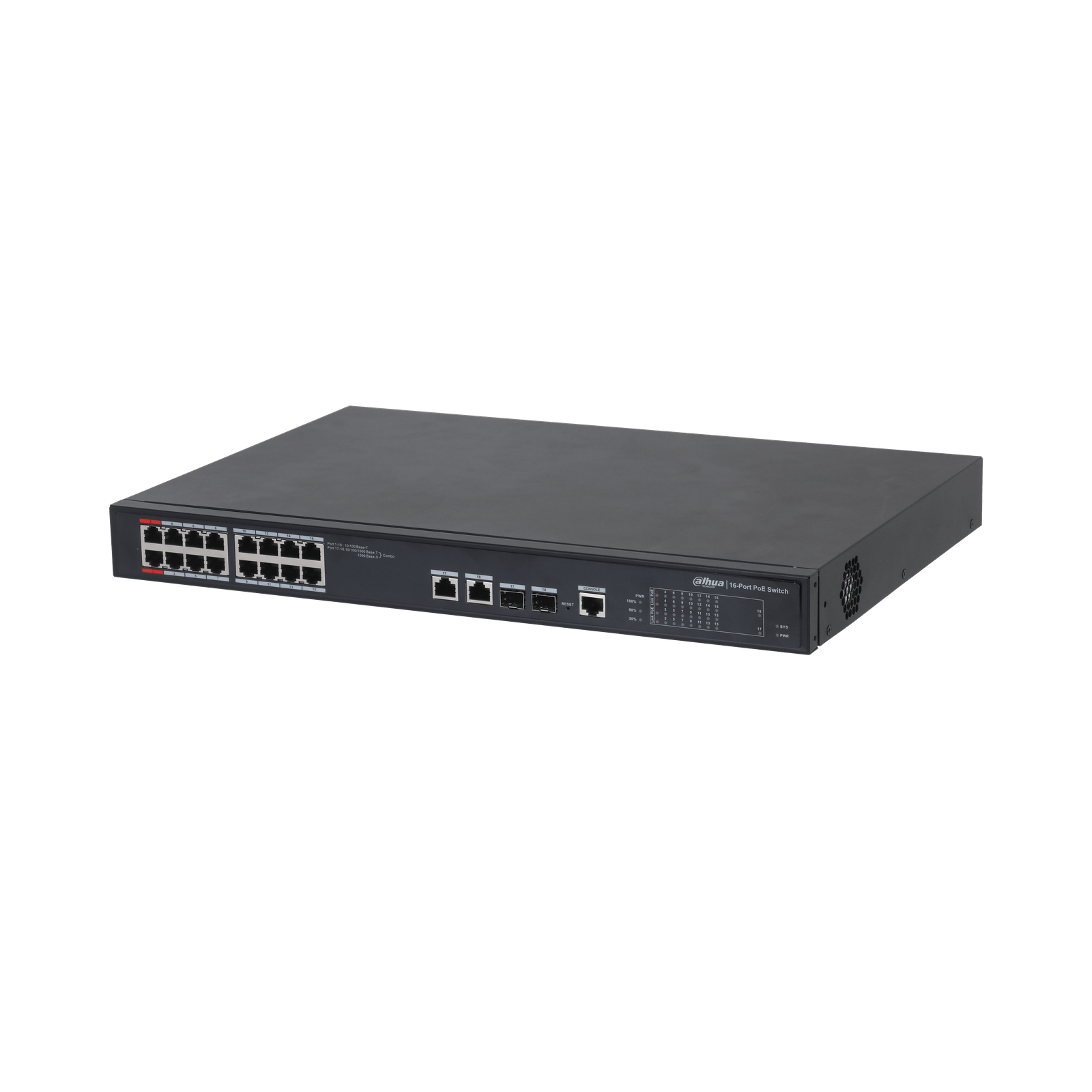

DAHUA Managed PoE Switch 16PoE 2Uplink (DH-PFS4218-16ET-240) $ 94.33 Select options This product has multiple variants. The options may be chosen on the product page Quick View
-

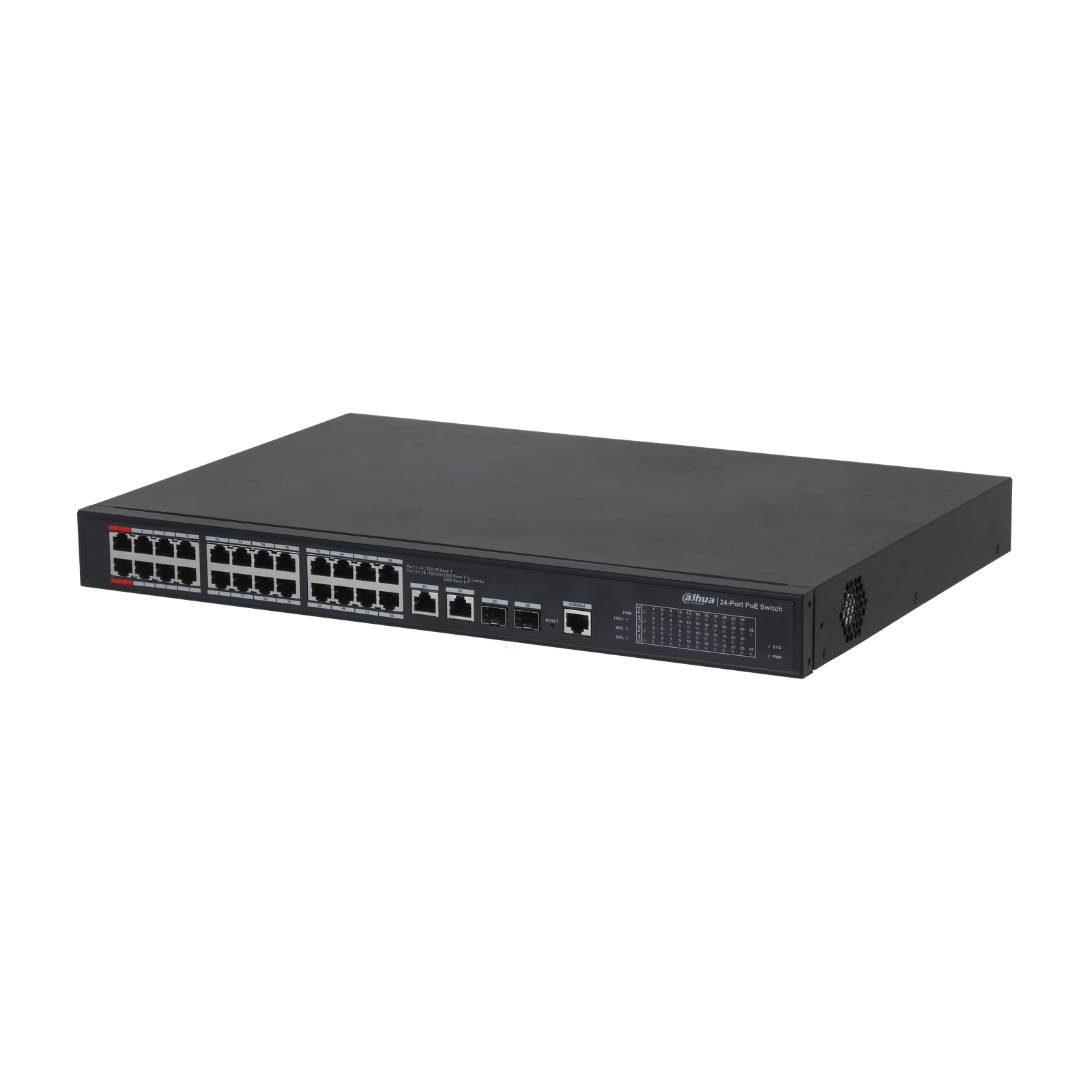

DAHUA Managed PoE Switch 24PoE 2Uplink (DH-PFS4226-24ET-360) $ 97.28 Select options This product has multiple variants. The options may be chosen on the product page Quick View
-
DAHUA Cloud Managed Desktop Switch 4PoE 2Uplink (DH-CS4006-4ET-60) $ 42.83 Select options This product has multiple variants. The options may be chosen on the product page Quick View
-

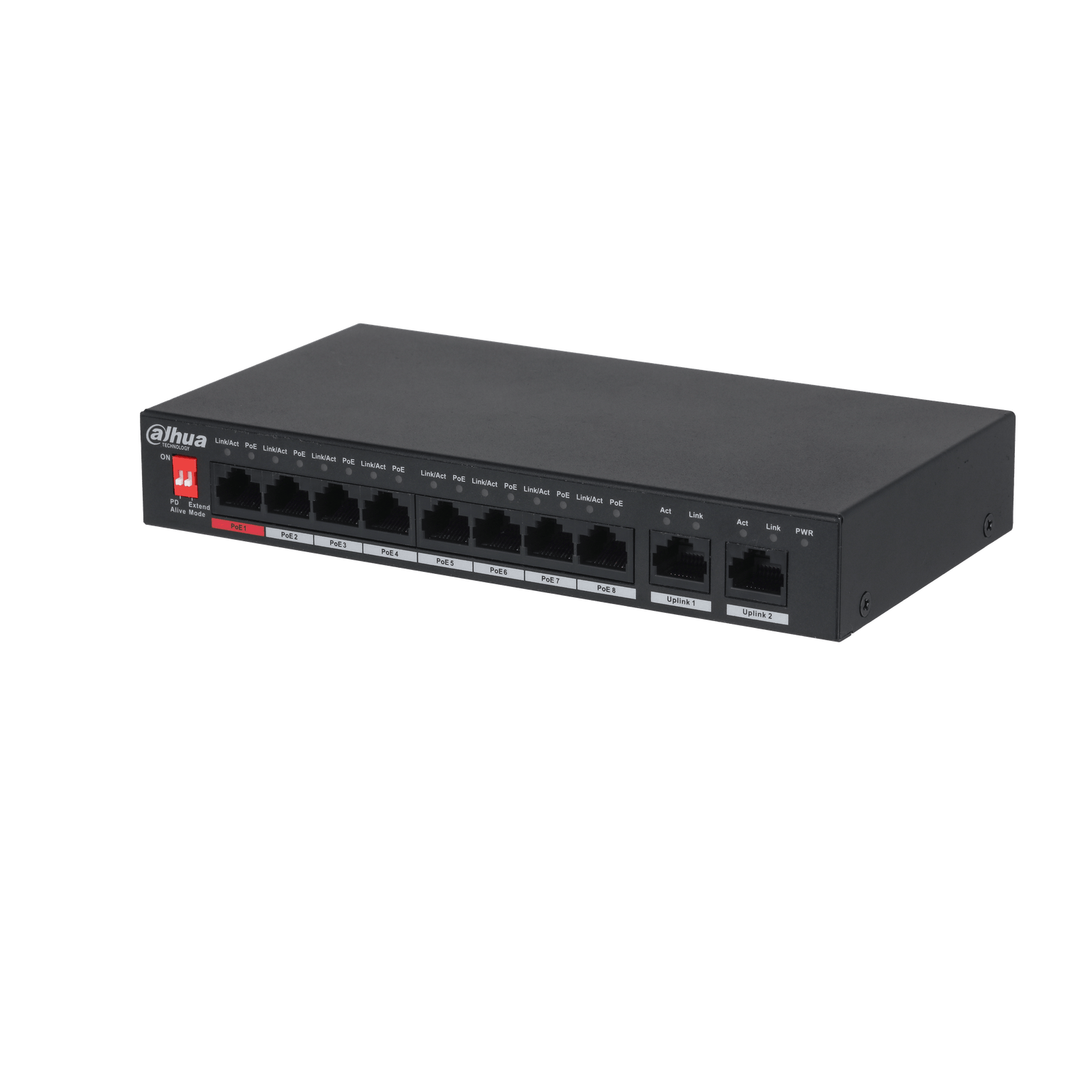

DAHUA 8PoE 2Uplink (DH-PFS3010-8ET-96) $ 61.68 Select options This product has multiple variants. The options may be chosen on the product page Quick View
-

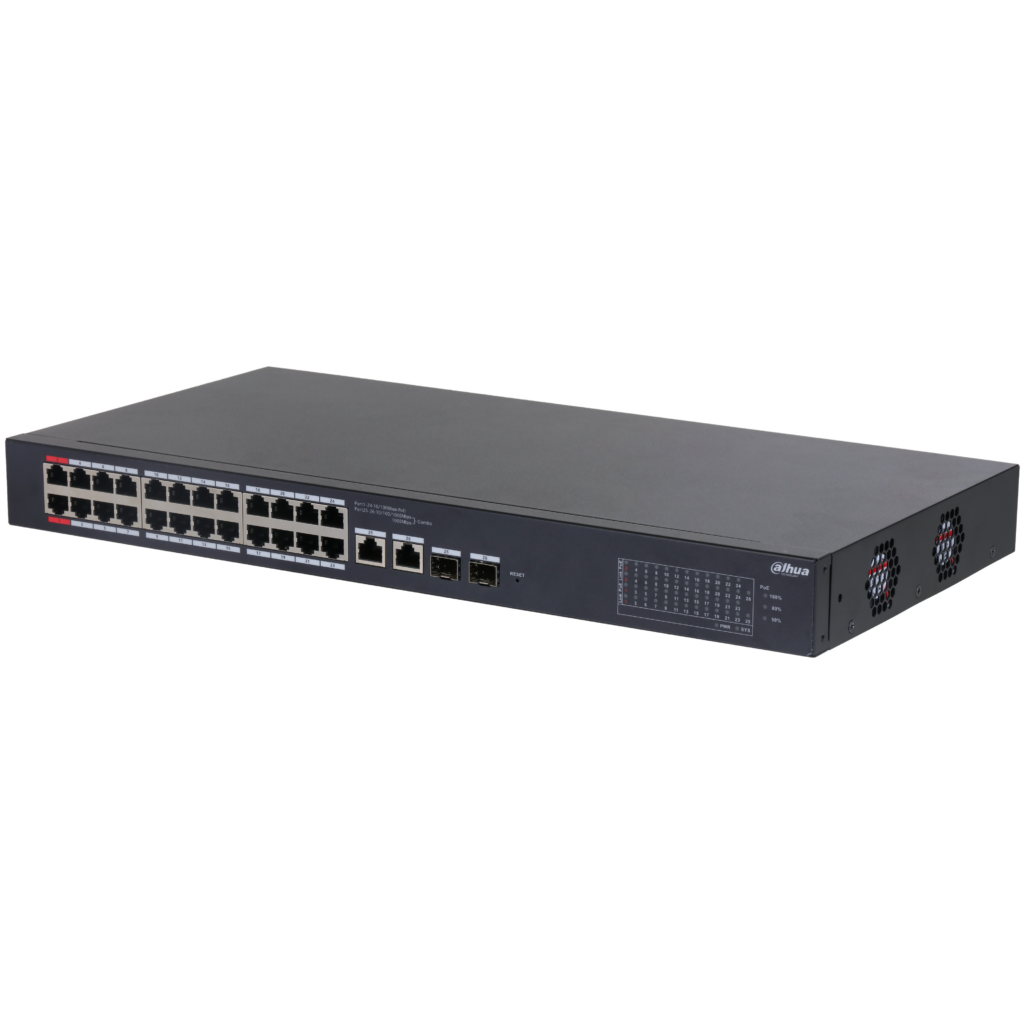

DAHUA Cloud Managed Desktop Switch 24PoE 2Uplink (DH-CS4226-24ET-375) $ 95.09 Select options This product has multiple variants. The options may be chosen on the product page Quick View
-
DAHUA Cloud Managed Desktop Switch 16PoE 2Uplink (DH-CS4218-16ET-240) $ 98.44 Select options This product has multiple variants. The options may be chosen on the product page Quick View -

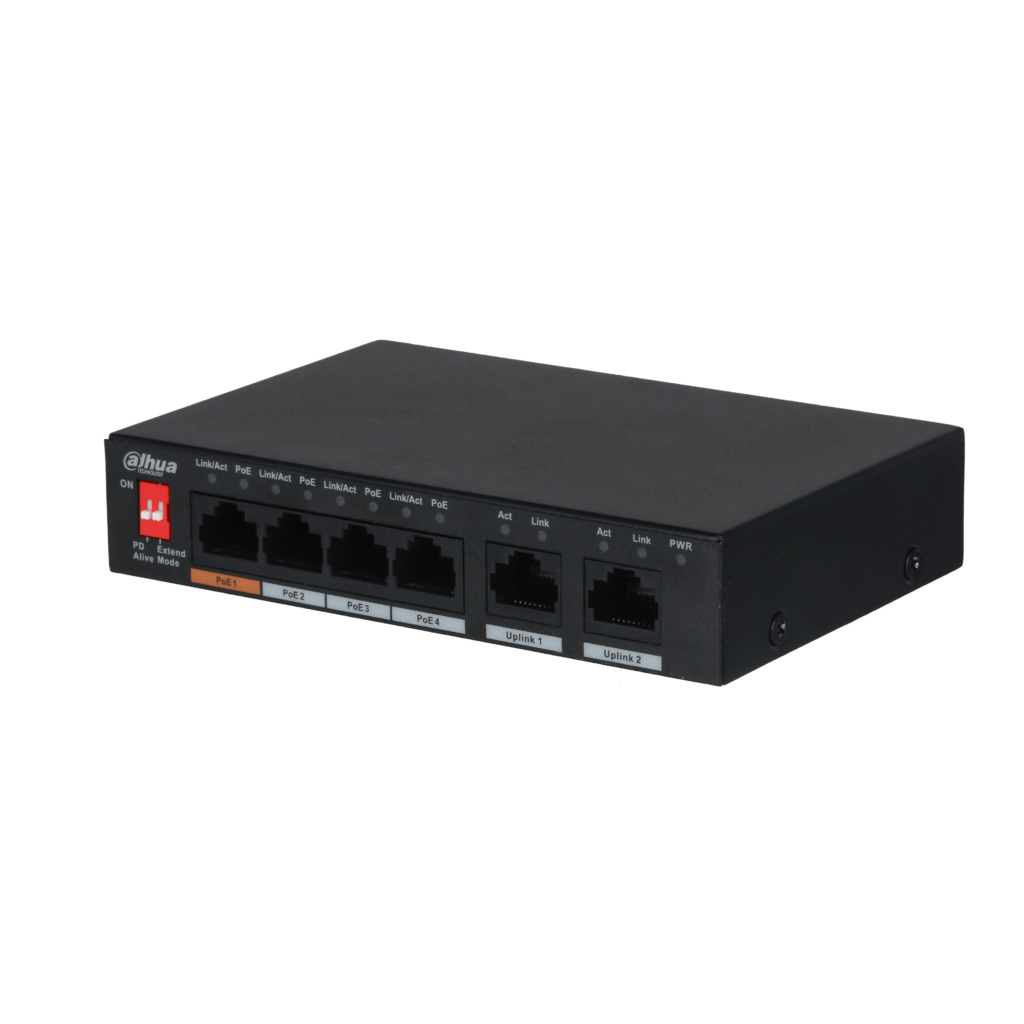

DAHUA 4PoE 2Uplink (PFS3006-4ET-60) $ 34.75 Select options This product has multiple variants. The options may be chosen on the product page Quick View
-

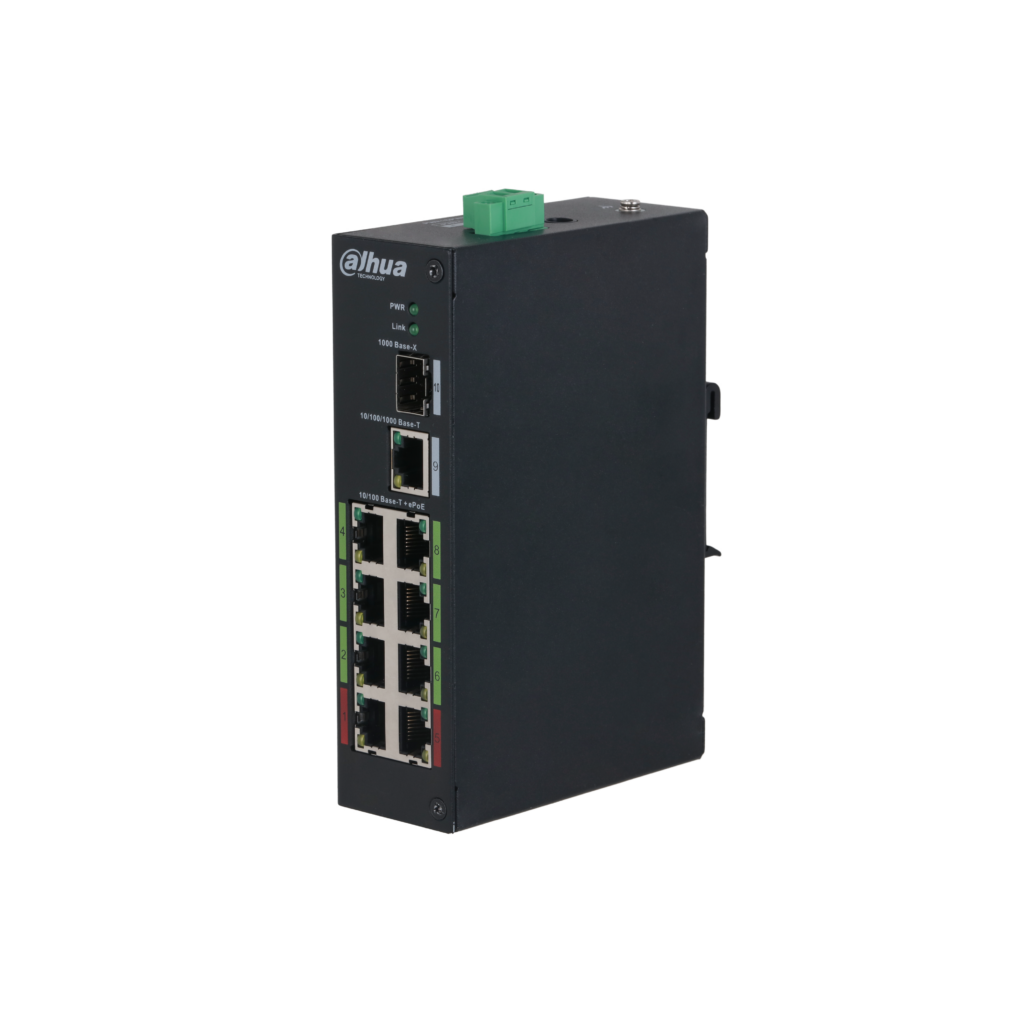

DAHUA 8ePoE,Hi-PoE 1Uplink (DH-LR2110-8ET-120) $ 94.33 Select options This product has multiple variants. The options may be chosen on the product page Quick View
-
DAHUA Managed PoE Switch 8PoE 2Uplink (DH-PFS4210-8GT-150) $ 91.47 Select options This product has multiple variants. The options may be chosen on the product page Quick View -
DAHUA Managed PoE Switch 16PoE 2Uplink (DH-S4220-16GT-190) $ 92.87 Select options This product has multiple variants. The options may be chosen on the product page Quick View
-

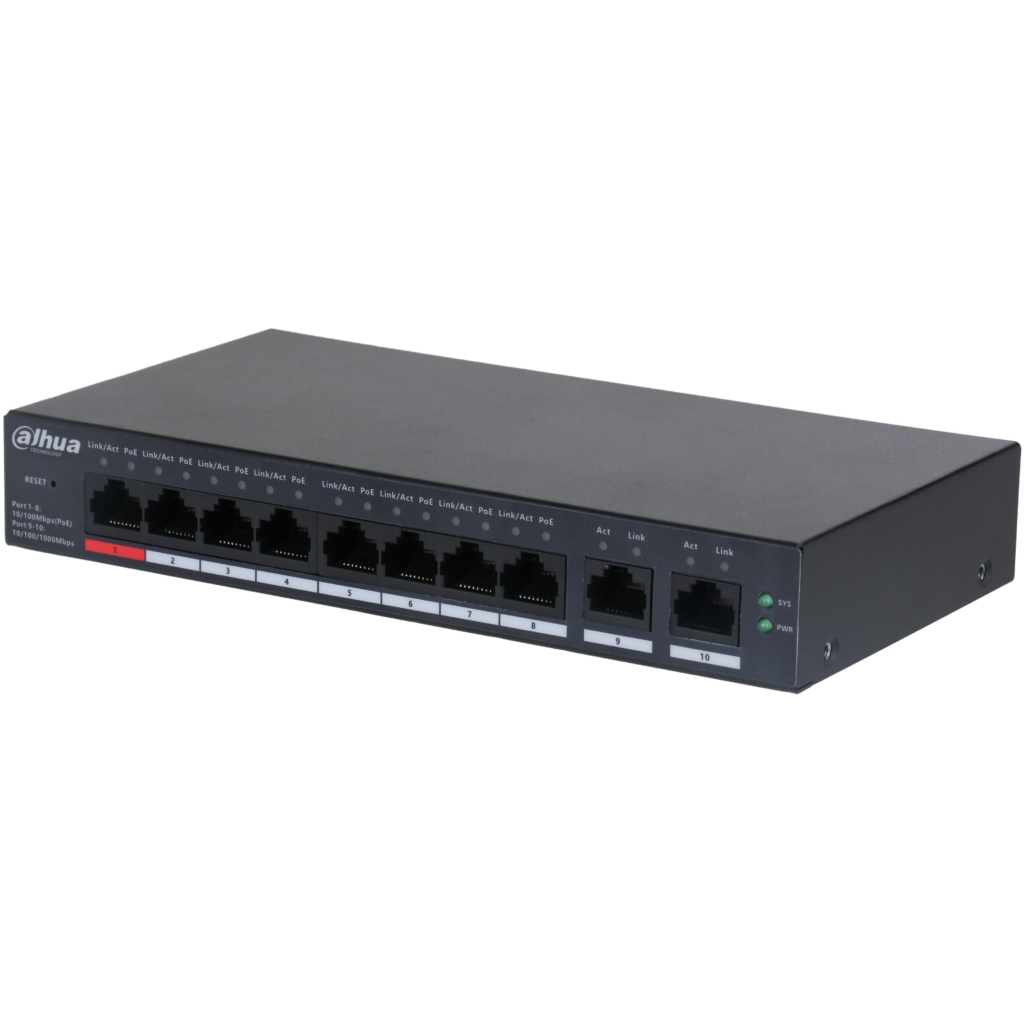

DAHUA Cloud Managed Desktop Switch 8PoE 2Uplink (DH-CS4010-8ET-110) $ 91.87 Select options This product has multiple variants. The options may be chosen on the product page Quick View
-
