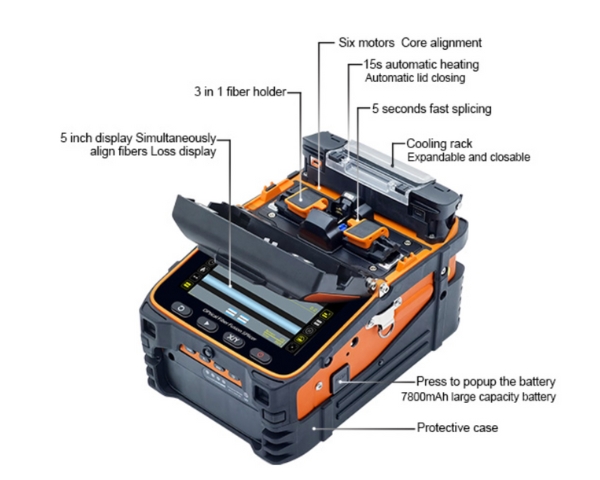

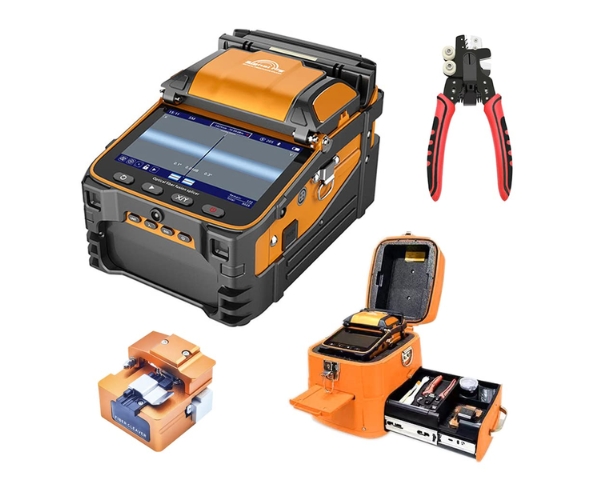

Fiber Optic Splicing Rental AI-9 100KM trunk line fusion splicer SIX MOTORS CORE ALIGNMENT 5sec Splicing 15sec Heating High-end luxury Signalfire fiber splicer AI-9 is a six-motor, fiber core alignment automatic fiber welding machine, with optical power, red light detection function. Industrial quad-core CPU, fast running speed, 5 seconds fast welding, 15 seconds fast heating, 5 inches high resolution LCD screen, 300 times magnification; The working efficiency is 50% higher than that of ordinary welding machine. Large-capacity lithium battery can be heated by fusion of about 260 cores, high altitude, desert, extremely cold and other harsh environment performance is still outstanding. The optical fiber optic splicing rental fusion splicer uses the high-speed image process technology and special exact orientation technology, so that the whole process of fiber’s fusion can be finished in 10 seconds automatically. Attention! By default, the device is configured in auto mode. In most cases, any adjustments of the default settings are not required. No calibration is required – it must be done only in case of problems with obtaining the correct splice. Available in the Google Play and AppStore application is required, for example, to change the default splicing program or calibration due to extremely changing environmental conditions.   Changing the parameters and configuration of the splicer is possible only through the Bluetooth interface with dedicated applications on Android / IPhone. Basic Parameter   Fiber alignment   Core/cladding   Motor number   6 motors   Splicing time   5s   Heating mode   15s， can be customized according to the external environment   Fiber type   Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion;   The cladding diameter   80-150μm   Splicing loss   0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）   Splicing mode   Automatic focusing core alignment, conventional/high precision welding   Splicing way   Automatic, semi-automatic   Fiber holder   Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable   VFL   The machine comes with: power: 15mW, 2Hz flashing and steady on mode   OPM   Wavelength: 850nm、1300nm、1310nm、1490nm、1550nm、1625nm、980nm、1270nm、1577nm、1650nm/Measurement range: -50 26dbm Absolute error: <0.3dB (-50dbm ~ 3dBm range)   Battery capacity   7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 260 cores   Magnification   320x (X or Y axis single display) 200x (x and Y axis dual display)   Fiber diameter   Coating diameter: 80-150μm/Coating diameter: 100-1000μm   Cutting length   Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm   Heat shrink tube   60mm、50mm、40mm、25mm   Tensile testing   standard 2N   Display   5 inch TFT color display screen   Boot time   1s, boot can enter the working mode   Data is stored   Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.   Wireless communication   Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m   Software upgrade   Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software   Management function   The equipment owner can be bound as the highest authority, and can remotely view the welding records,welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment.   Return loss   Better than 60 db   Product protection   Waterproof, dustproof and fall proof   Power supply   Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level   The work environment   Temperature: -15 ~ 50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s
